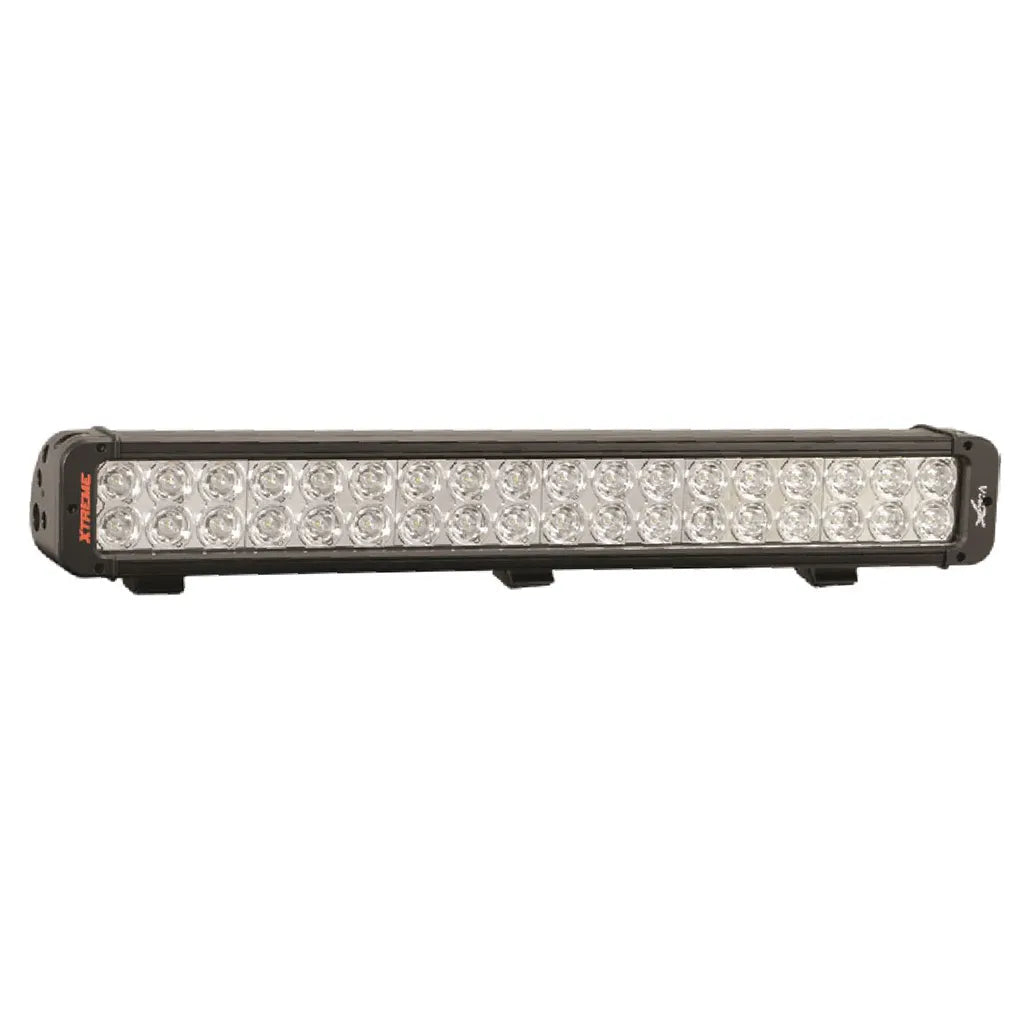

Vision X PX-36 21-inch LED Light Bar Kit Volkswagen Amarok (2016 On)

Features and Benefits

• 21-inch LED light bar kit, specifically designed for Volkswagen Amarok - an immeasurable, value-adding upgrade
• Incredibly strong 19,008 lumens LED light - enhance visibility in low-light conditions
• Unbreakable polycarbonate glass - withstands the toughest knocks and bangs
• Heavy-duty, moisture-proof housing - resistant to all weather conditions
• Active automatic temperature control - maximises intensity and brightness of the light
• Military-standard EMC interference filter - eliminates interference with other electronics
• Includes mounting brackets, accessories and instructions - easy to install
• 5½ year’s Vision X warranty - for added peace of mind

The most powerful Europe-approved vehicle-mounted LED light

The Vision X 21-inch Xmitter Prime Xtreme PX-36 LED light bar generates a striking 19,008 lumens - for comparison - a 35W halogen lamp produces approximately 750 lumens. With the Xmitter Prime Xtreme PX-36’s IRIS reflectors and multi-optics, the light bar creates a broad mixed beam light pattern. This effective use of advanced optics gives you enhanced visibility in low-visibility conditions - in both length and width of the light - with an emphasis on the road ahead. This is especially practical in giving incredibly strong light both horizontally and vertically to help spot dangers along the roadside. Through the mixed/combo beam pattern, the light emitted from the centre of the light bar is optimised for additional frontal reach and visibility without wasting too much light upwards or into the periphery. Unlike cheaply-manufactured LED light bars, Vision X products are renowned in Europe and the United States for their quality of light output through extreme-focus reflectors. Symptoms of cheaply-manufactured alternatives include “loss of light” - unoptimised lighting angles. Vision X products are engineered for the highest possible luminous efficacy - the ratio of lumens per watt.Suitable for low-level installations (under your registration plate), the Xmitter Prime Xtreme PX-36 gives you a 10° focused beam and a smooth, secondary 25° flood beam. Unmatched in terms of effective power and performance, the light bar pumps out almost double the light compared to Vision X XPR variants.

Internationally Certified with Unbreakable Glass

The Vision X 21-inch Xmitter Prime Xtreme PX-36 LED light bar kit is certified with IP68 and IP69K ratings and housed in a heavy-duty anodised aluminium, moisture-proof casing able to withstand vibrations of up to 15.6 Grms. Integrated heatsinks and cooling channels help guarantee the lifetime of the LEDs (Light Emitting Diodes). IP (Ingress Protection) is the international standard and accepted measurement of resistance to dust and liquid. The Xmitter Prime’s IP68 rating means the light bar can withstand road dust and dirt as well as resist water submersion up to a depth of 1.5 metres for 30 minutes. The IP69K rating certifies that the light bar is able to withstand high water pressure and steam cleaning. The in-built flexible polycarbonate glass is lightweight, impact-resistant, shatterproof - and provides 100% UV protection. The glass means the powerful lenses are shielded from stone chips and road debris, maximising the lifespan and effectiveness of your light bar.Vision X products are certified with the highest military radio interference classification - meaning the installation of the Xmitter LED light bar, unlike cheaper alternatives, won’t lead to annoying interference to your vehicle’s radio or other electronics.

Prime Drive Technology

Cheaper, lower quality LED light bars famously suffer deterioration from high operating temperature. This reduces the LED’s (Light Emitting Diodes) brightness, colour temperature and effectiveness over time. Vision X’s unique Prime Drive technology actively monitors temperature through ETM (electronic monitoring). When a critical temperature limit is reached, PWM (Pulse Width Modulation) is activated - the LED lights blink faster than the eye can see, reducing the effect of heat on the lifespan of the light bar. This system has helped establish Vision X products as superior in the market.

Includes

• Vision X 21-inch Xmitter Prime Xtreme PX-36 LED light bar
• Connectors, wire relay harness and fuses
• Vehicle specific mounting clamps for quick, easy installation
• Detailed installation guide



High-Level Certifications

• E-Mark - European Regulatory certification for on highway use
• DOT - US Department of Transportation certified for on road use
• CE - CE is a mandatory conformity mark for products in the European Economic Area
• SAE - SAE standard compliant for transport and automotive regulations
• ADR - Products which are in compliance with the Australian Design Rules (ADR)
• RoHS - Ensures no use of restricted hazardous materials in products
• EMC - EMC and EMI certifies that a product does not interfere with other electrical products

Specifications

E-Marked Certification	ECE R112 ref. 45
Other certifications	CE, RoHS
Housing	Rigid Anodised Aluminium
Voltage	9 - 32V
Amp. draw	15 Amp
IP-rating	IP68, IP69K
Vibration class	15.6G
Temperature span	-40°C - +80°C
Height	76mm
Depth	84mm
Width	525mm
Watt	180W
Raw Lumen	19,008
Lens	Polycarbonate
Beam Pattern	10°, 25°
