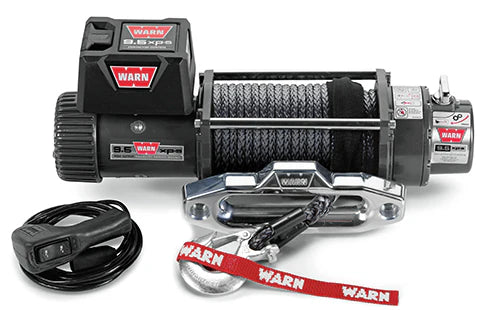

Warn 9.5XP-S 12V Winch

The Warn 9.5XP-S 12V winch comes with 80' of 3/8" (24.38m of 9.5mm) WARN Spydura synthetic rope, hook, remote control on a 12' (3.7m) lead, hand-held wireless remote and polished aluminum hawse fairlead. It's extreme-duty winch sealing enables superior water resistance, with a 3-stage planetary geartrain for fast, smooth, reliable operation and a series-wound winch motor. The extended-duty control pack delivers long duty cycle to tackle the most demanding pulls, an exclusive brake design provides superior operator control when winching and the remote-mount control box allows for a variety of mounting configurations. For Wireless connectivity, the Warn 90287 remote enables wireless winch control at a range of up to 50 feet.

Capacity lb	9500
Capacity kg	4310
1st layer Line Speed (no load)	37.5 ft/min (11.43 m/min)
Remote	Hand Held 12 ft (3.7m) lead
Clutch Operation	Rotary
Brake	Cone
Fairlead	Hawse
Wire Rope Spec	--
Synthetic Rope Spec	3/8" (9.5mm) x100 ft (30.5m)
Mechanical Warranty	Limited Lifetime
Electrical Warranty	7 Years
IP Rating (winch only)	--
Weight (kg)	35.83

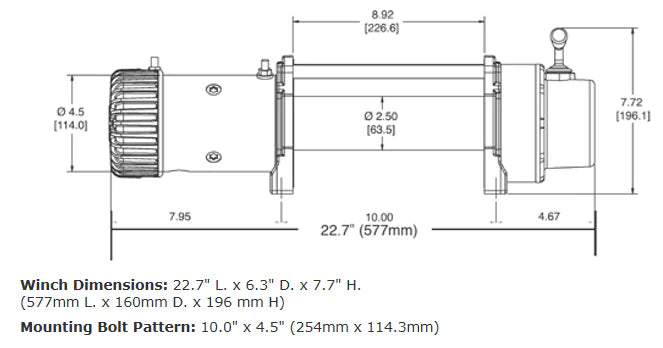

Mounting Bolt Centres	10" x 4 1/2" (254mm 114mm)
