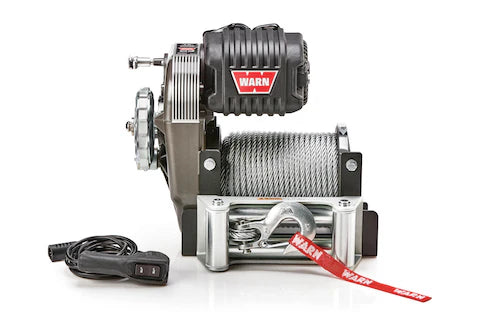

Warn M8274 12V Winch

The M8274 12V electric winch has a pull capacity of 10,000 lb and with 150' of 5/16" steel cable, it also has a very long line capacity. The no-load retrieval speed is 76 feet per minute with a unique spur gear drivetrain and upright design. It's braking system delivers smooth operation with superior heat dissipation. Roller fairlead, remote control with 12-ft. lead, free spool clutch and battery cables are included.

Capacity lb	10000
Capacity kg	4,536

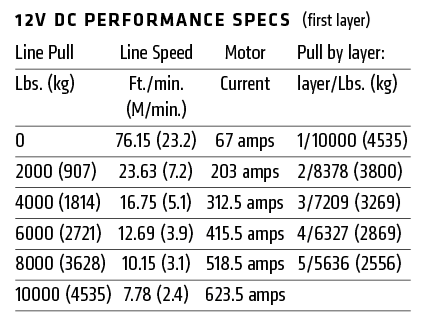

1st layer Line Speed (no load)	76 ft/min (23 m/min)
Remote	Hand Held 12 ft (3.7m) lead
Clutch Operation	Stainless steel handle
Brake	Ratcheting Disk
Fairlead	Roller
Wire Rope Spec	5/16" (8mm) x 150 ft (45.7m)
Synthetic Rope Spec	--
Mechanical Warranty	Limited Lifetime
Electrical Warranty	7 Years

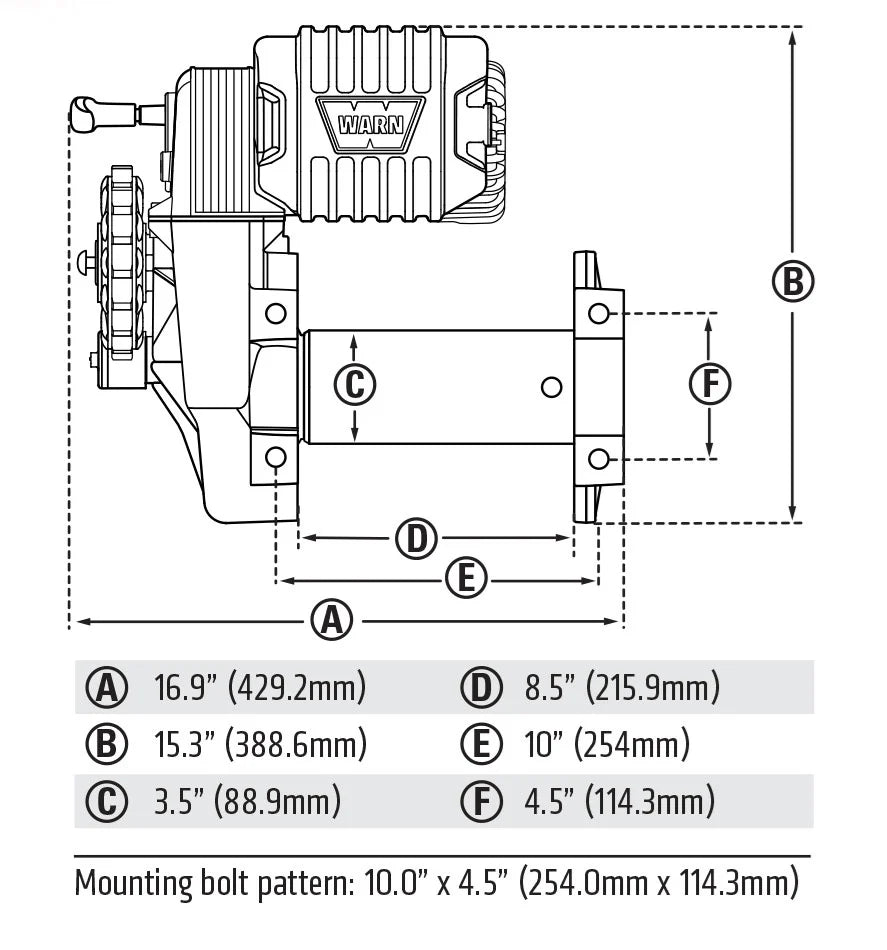

Mounting Bolt Centres	10 1/2" x 4 1/2" (254mm x 114mm)
