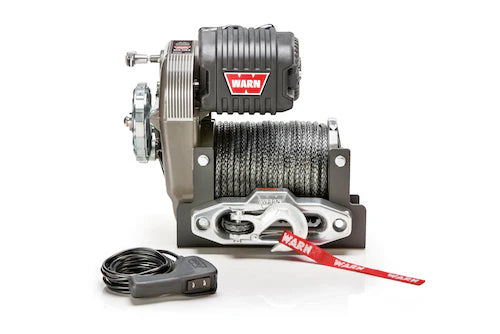

Warn M8274-S 12V Winch - Synthetic Rope

High-output 6 HP motor for increased 10,000 lb. pulling capacity (up from 8,000 lbs.) ideal for today's larger, heavier vehicles IP68 waterproof Albright electrical contactor for the ultimate in reliability and control Ergonomic stainless steel clutch T-handle is easier to use than before Two Oilite bushings installed on pinion gear assembly for improved durability in extreme recovery conditions Bolt-and-washer assembly replaces the retaining ring on the brake shaft.

Capacity lb	10000
Capacity kg	4,536
1st layer Line Speed (no load)	76 ft/min (23 m/min)
Remote	Hand Held 12 ft (3.7m) lead
Clutch Operation	Stainless steel handle
Brake	Automatic Disk
Fairlead	Hawse
Wire Rope Spec	--
Synthetic Rope Spec	3/8" (9.5mm) x150 ft (45.7m)
Mechanical Warranty	Limited Lifetime
Electrical Warranty	7 Years
IP Rating (winch only)	IP68
Weight (kg)	44.59

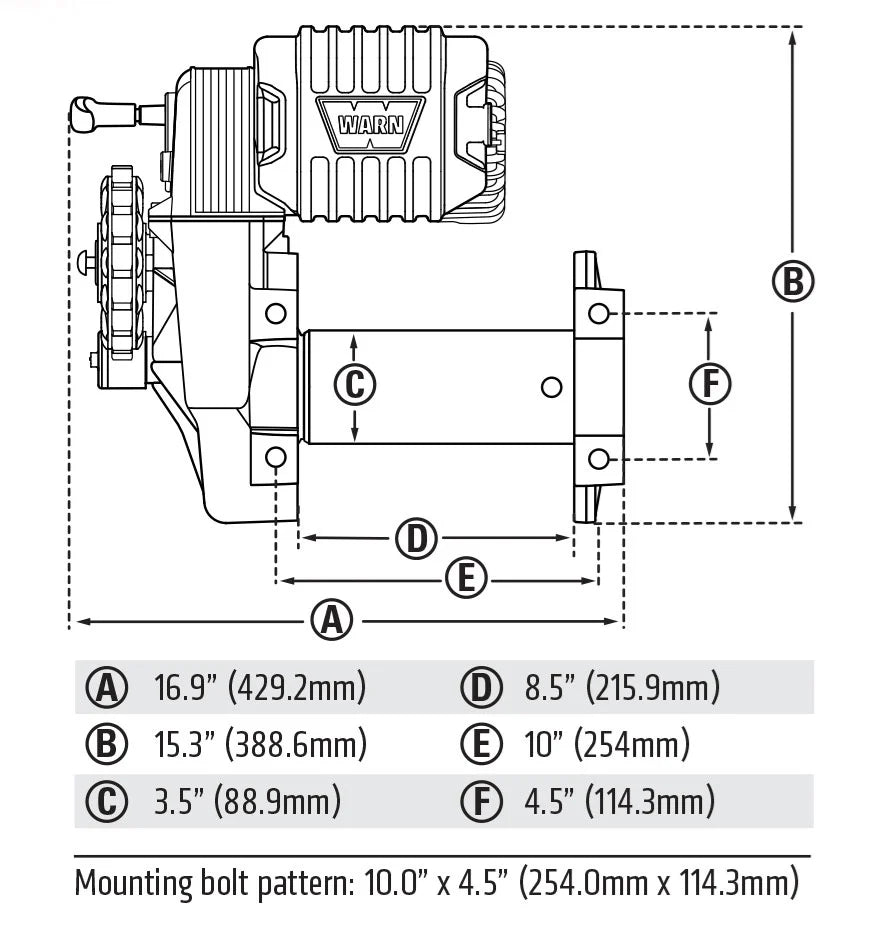

Mounting Bolt Centres	10 1/2" x 4 1/2" (254mm x 114mm)
