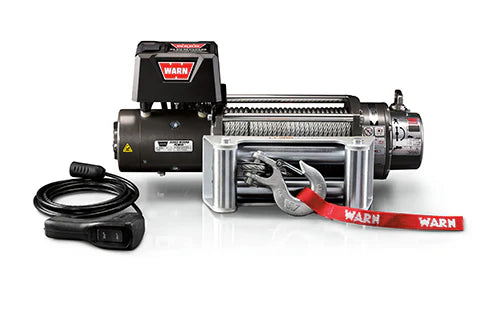

Warn XD9 12V Winch 9000 lb Capacity Wire Rope

The Warn XD9000 winch features a compact body and separate control pack that allows for use in tight spaces. The low-profile design and separate control box allows for a wide range of mounting options and the exclusive brake design provides superior control while winching. With a durable 3-stage planetary geartrain for smooth, reliable operation and a series-wound, high-speed motor providing a faster line speed. Supplied with 100' of 5/16" wire rope and a remote control with 12' (3.7m) lead. For Wireless connectivity, the Warn 90287 remote enables wireless winch control at a range of up to 50 feet.

Capacity lb	9000
Capacity kg	4083

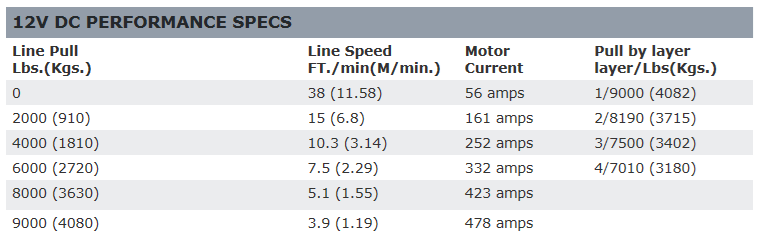

1st layer Line Speed (no load)	38 ft/min 11.58 m/min
Remote	Hand Held 12 ft (3.7m) lead
Clutch Operation	Rotary
Brake	Automatic Cone
Fairlead	Roller
Wire Rope Spec	5/16" (8mm) x 100 ft (30.5m)
Synthetic Rope Spec	--
Mechanical Warranty	Limited Lifetime
Electrical Warranty	7 Years
IP Rating (winch only)	--
Weight (kg)	40.57

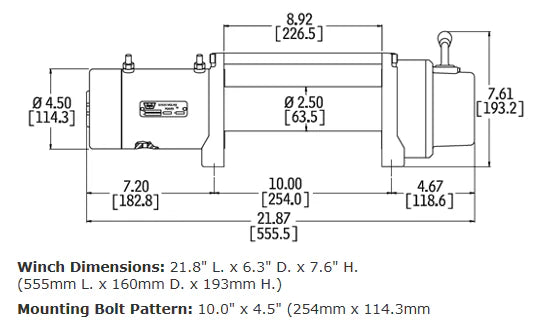

Mounting Bolt Centres	10" x 4 1/2" (254mm 114mm)
