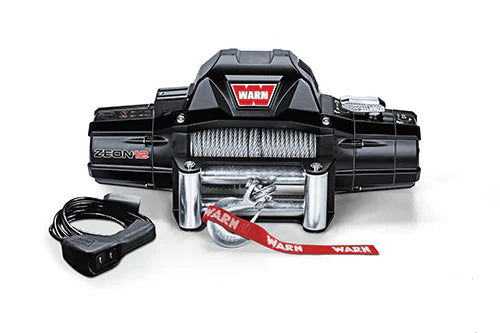

Warn Zeon 12 CE Winch with Wire Rope - 12V

The ZEON 12 winch has a 12,000 lb (5443kg) single-line pulling capacity and includes 80' of durable 3/8" galvanized steel wire rope. The convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options. The large diameter winch drum reduces rope wear, is light weight and has an integrated rope anchor for easy rope installation. A control pack relocation kit is required to mount control box remotely from the winch.

Capacity lb	12000
Capacity kg	5443

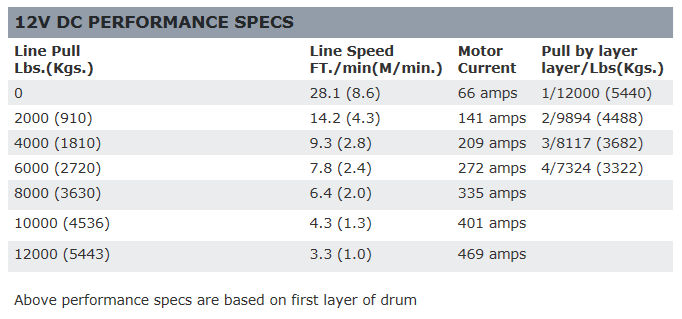

1st layer Line Speed (no load)	28.2 ft/min (8.6 m/min)
Remote	Remote with 3.7m lead. Wireless Remote Available  (90287)
Clutch Operation	Manual Lever
Brake	Mechanical Cone Type
Fairlead	Roller
Wire Rope Spec	3/8" (9.5mm) x 80 ft (24.38m)
Synthetic Rope Spec	--
Mechanical Warranty	Limited Lifetime
Electrical Warranty	7 Years
IP Rating (winch only)	IP68
Weight (kg)	47

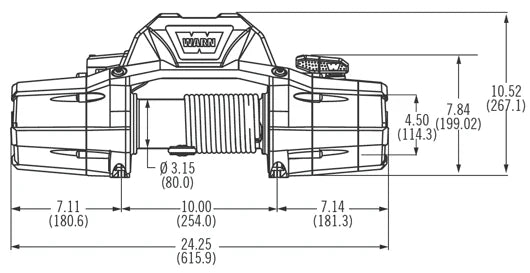

Mounting Bolt Centres	10" x 4 1/2" (254mm 114mm)
