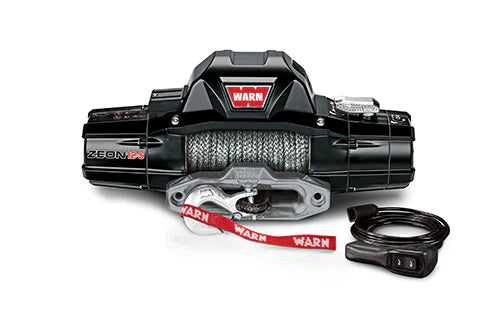

Warn Zeon 12-S CE Winch with Synthetic Rope - 12V

The perfect choice for heavily loaded off road vehicles, the Zeon 12-S has a 12,000 lb (5443kg) capacity with planetary gear train and series-wound motor to deliver fast, quiet and reliable pulling power. The convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options (a relocation kit  is required). It's aluminum winch drum reduces rope wear, is light weight and has an integrated rope anchor for easy rope installation. An automatic mechanical cone brake holds the full rated load and offers excellent control while winching. Complete with ultra-durable metal-reinforced rubberized corded remote with 12' lead, 80' of 3/8" Warn Spydura Pro synthetic rope and aluminum hawse fairlead with powder-coat finish. A control pack relocation kit is required to mount control box remotely from the winch.

Capacity lb	12000
Capacity kg	5443

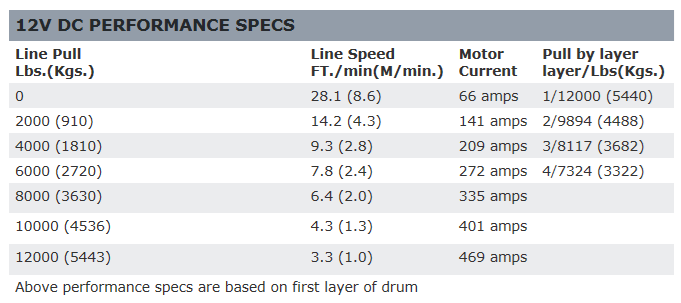

1st layer Line Speed (no load)	28.2 ft/min (8.6 m/min)
Remote	Remote with 3.7m lead. Wireless Remote Available  (90287)
Clutch Operation	Manual Lever
Brake	Mechanical Cone Type
Fairlead	Hawse
Wire Rope Spec	--
Synthetic Rope Spec	3/8" (9.5mm) x 80 ft (24.38m)
Mechanical Warranty	Limited Lifetime
Electrical Warranty	7 Years
IP Rating (winch and remote)	IP68
Weight (kg)	38.78

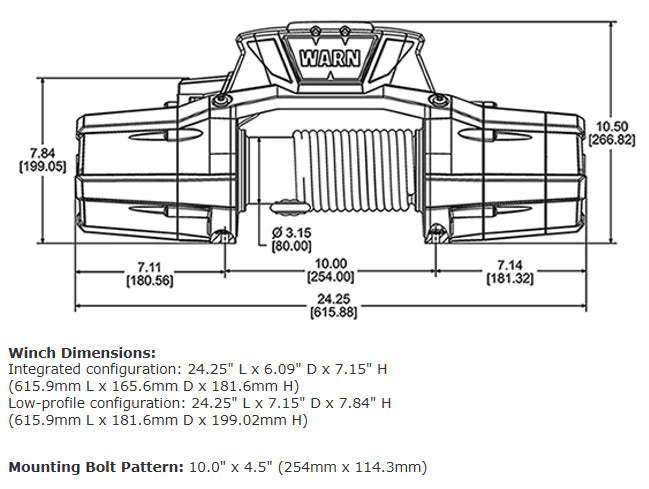

Mounting Bolt Centres	10" x 4 1/2" (254mm 114mm)
