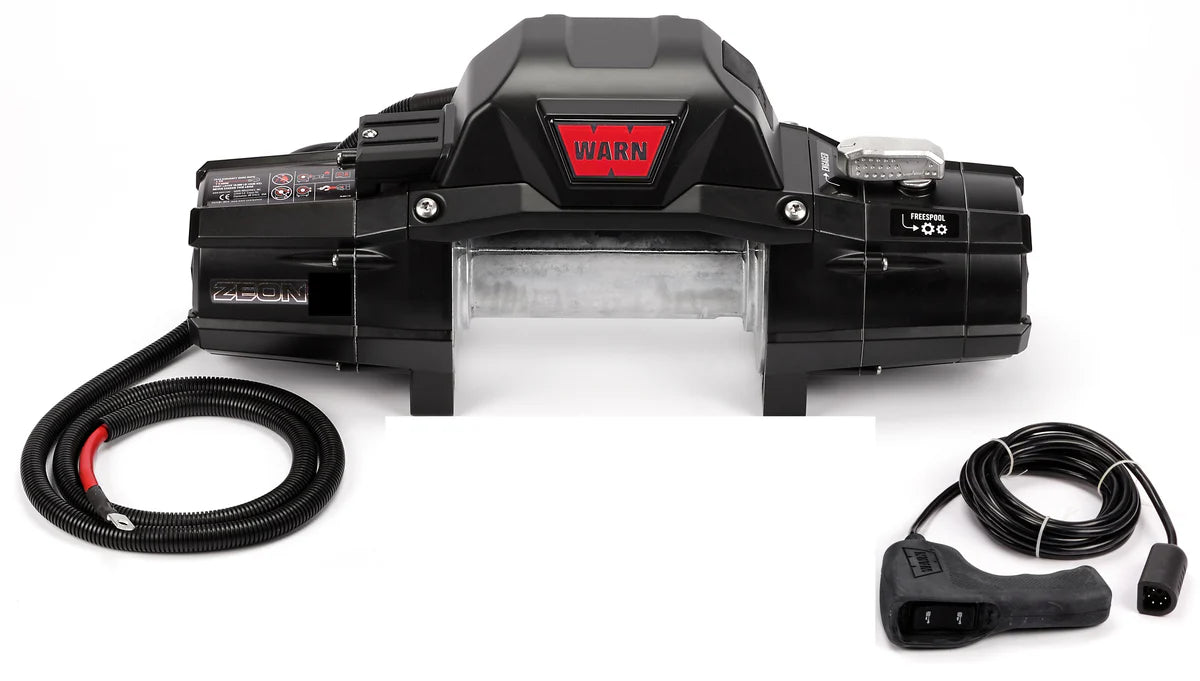

Warn Zeon 12 Winch NO Wire Rope - 24V

The Zeon 12 24V winch has a 12,000 lb pulling capacity, combined with a fast line speed and 24V capacity make this winch ideal for commercial use. With a heat-dissipating brake and smooth planetary gear train. Please note, this winch does not come with winch rope.

•  Synthetic rope available with hook (FR10-30CH-SE)
• Wire rope available with hook (WR10-25CH-F)

A control pack relocation kit is required to mount control box remotely from the winch.

Capacity lb	12000
Capacity kg	5443
1st layer Line Speed (no load)	24.6 ft/min (7.5m/min)
Remote	Remote with 3.7m lead. Wireless Remote Available  (90287)
Clutch Operation	Manual Lever
Brake	Mechanical Cone Type
Fairlead	Roller - Included
Wire Rope Spec (not included)	3/8" (9.5mm) x 80 ft (24.38m)
Synthetic Rope Spec (not included)	3/8" (9.5mm) x 80 ft (24.38m)
Mechanical Warranty	Limited Lifetime
Electrical Warranty	7 Years
IP Rating (winch only)	IP68
Weight (kg)	37.19

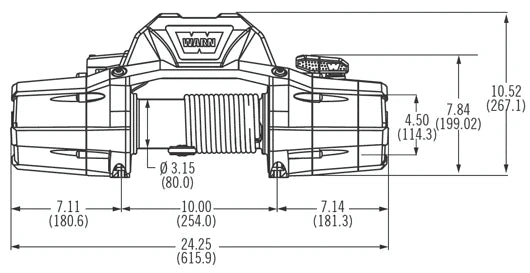

Mounting Bolt Centres	10" x 4 1/2" (254mm 114mm)
