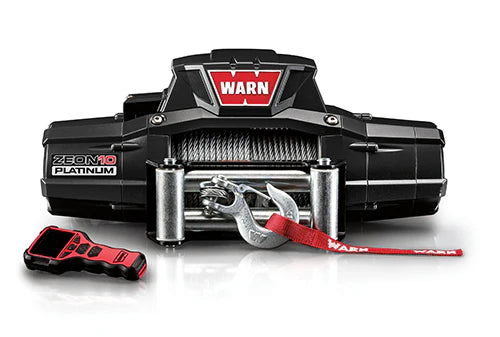

Warn Zeon Platinum 10K Winch with Wire Rope - 12V

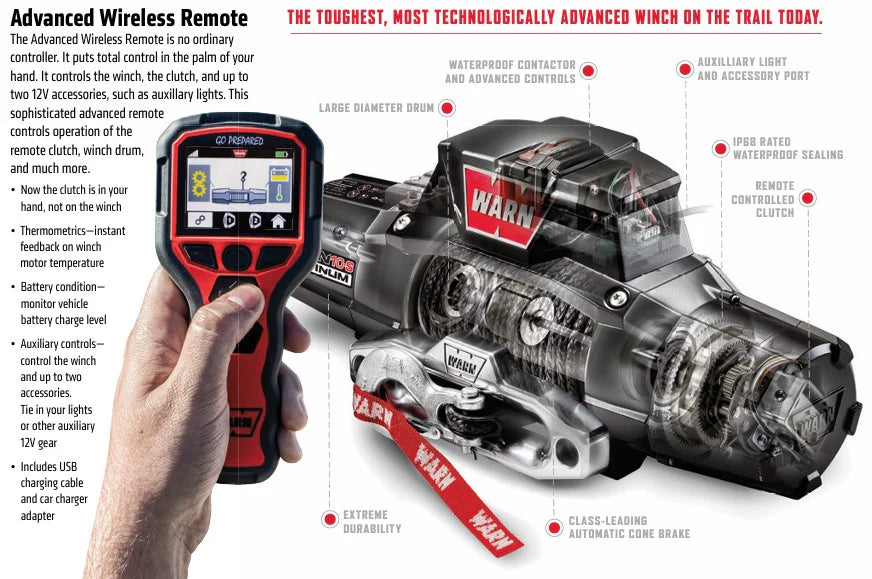

The Zeon Platinum 10K winch has a 10,000 lb capacity with 80' of 3/8" steel winch rope. It has an IP-68 waterproof rating with advanced seals designed to keep water and dust out. It's no-load line speed of up to 13.4m per minute means the Zeon Platinum is the perfect tool for driver-assisted vehicle recovery, with a high-performance motor for efficient amp draw, stronger gear train and high-strength sleeve-in-drum brake design. Comes with a wireless remote as standard which controls not only the winch, but also the clutch and other accessories.

• Specification and Parts List
• Installation Guide
• Quick Start Guide
• Warranty



Capacity lb	10000
Capacity kg	4,536

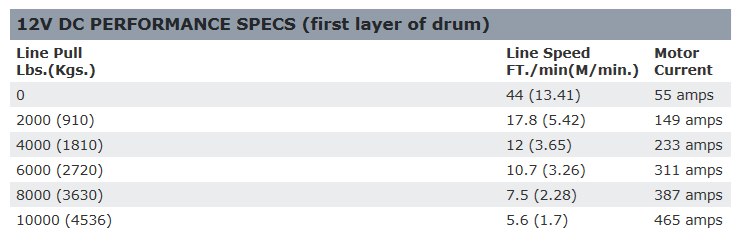

1st layer Line Speed (no load)	44 ft/min (13.4 m/min)
Remote	Wireless (93043)
Clutch Operation	Wireless
Brake	Mechanical Cone Type
Fairlead	Roller
Wire Rope Spec	3/8" (9.5mm) x 80 ft (24.38m)
Synthetic Rope Spec	--
Mechanical Warranty	Limited Lifetime
Electrical Warranty	7 Years
IP Rating (winch and remote)	IP68
Weight (kg)	48.08

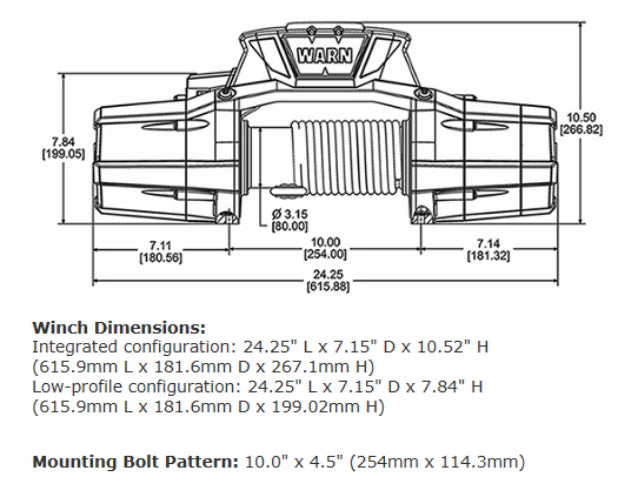

Mounting Bolt Centres	10" x 4 1/2" (254mm 114mm)
