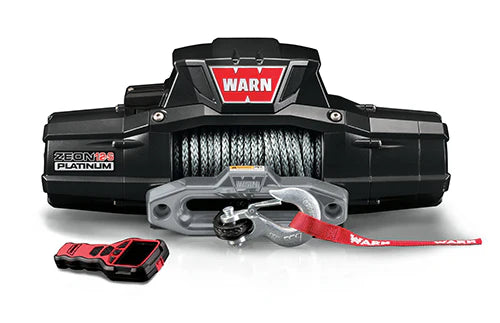

Warn Zeon Platinum 12K-S Winch with Synthetic Rope - 12V

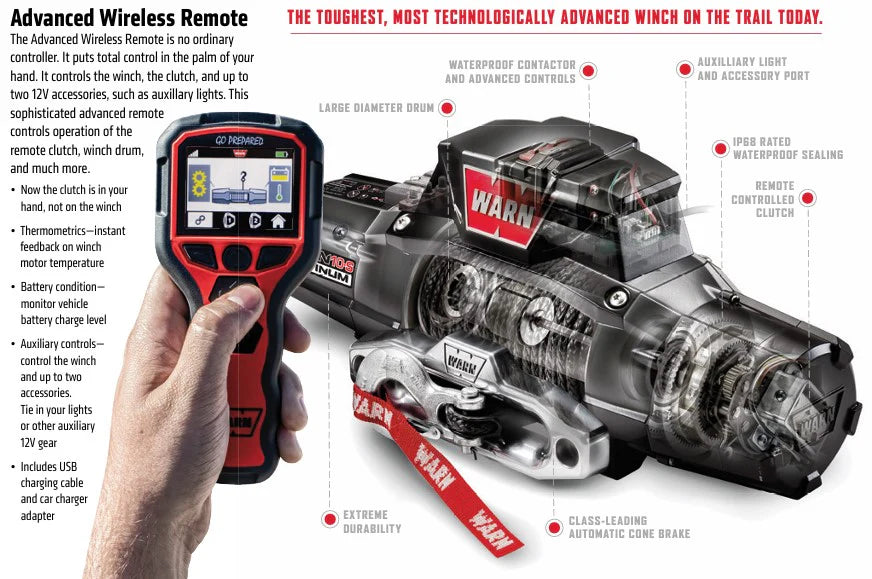

The Zeon Platinum 12K-S winch has a 12,000 lb capacity with 80' of 3/8" synthetic winch rope. It has an IP-68 waterproof rating with advanced seals designed to keep water and dust out. It's no-load line speed of up to 13.4m per minute means the Zeon Platinum is the perfect tool for driver-assisted vehicle recovery, with a high-performance motor for efficient amp draw, stronger gear train and high-strength sleeve-in-drum brake design. Complete with a wireless remote as standard which controls not only the winch, but also the clutch and other accessories.

• Specification and Parts List
• Installation Guide
• Quick Start Guide
• Synthetic Rope Installation Guide
• Warranty



Capacity lb	12,000
Capacity kg	5443

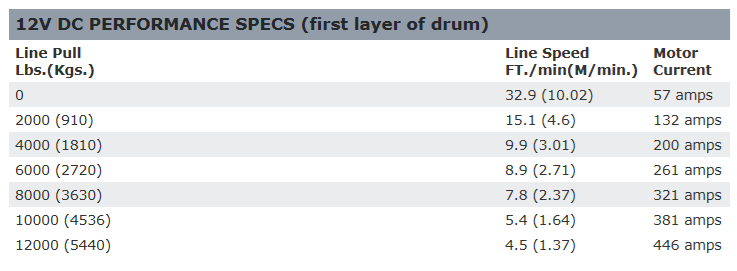

1st layer Line Speed (no load)	32.9 ft/min (10.0 m/min)
Remote	Wireless  (93043)
Clutch Operation	Wireless
Brake	Mechanical Cone Type
Fairlead	Hawse
Wire Rope Spec	--
Synthetic Rope Spec	3/8" (9.5mm) x80 ft (24.4m)
Mechanical Warranty	Limited Lifetime
Electrical Warranty	7 Years
IP Rating (winch and remote)	IP68
Weight (kg)	36.74

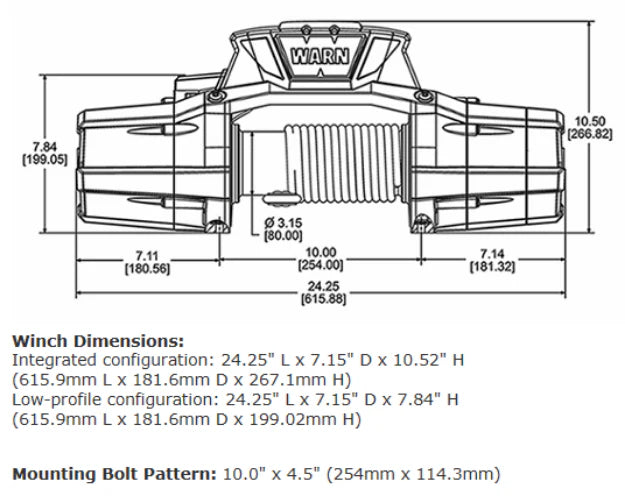

Mounting Bolt Centres	10" x 4 1/2" (254mm 114mm)
